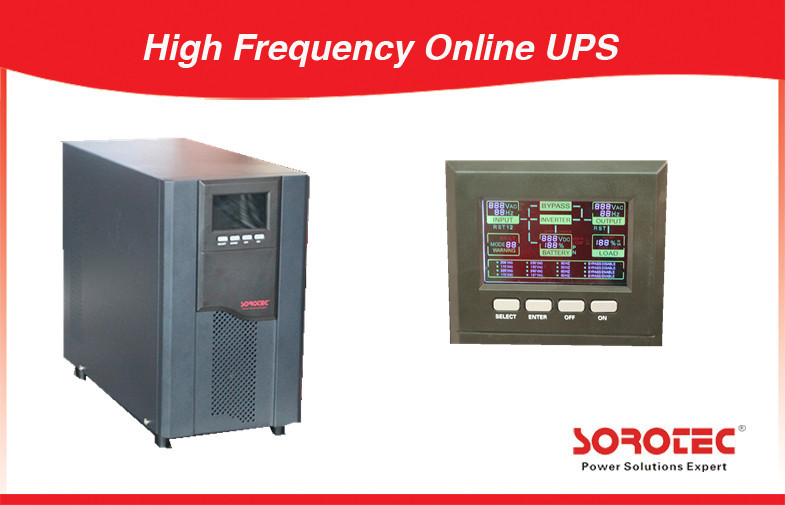

Backup power,1kva/0.9kw High Frequency UPS Support Maxium 3units for Parallel Working
Key Features:
1Ph in/1Ph out online UPS adopt advanced three-level inverter and stable parallel control technology to provide reliable power supply for data centre, telecom, medical and so on precision equipment.
Product Brief
| Model | HP9116C/HP9316 Plus 1-20k series |
| Type | |
| Phase | 1 Ph in/1Ph out & 3Ph in/3 Ph out |
| Capacity | 1-20KVA |
| Output Power Factor | 0.9 |
| Nominal Voltage | 220/230/240/380VDC |
| Nominal Frequency | 40-70HZ |
| Parallel Working | Maximum 3 units |
| Battery Voltage | 24VDC/36VDC/48VDC/72VDC/96VDC |
| Transfer Time | 0ms |
Muilti-function and Friendly Design
Advanced Parallel Technology
1.Stable parallel control technology make sure current sharing to 1%.
2.Select trip technology can avoid and isolation system fault then improved system availability.
3.Flexible extension capacity and redundance management that can satisfy all kinds of 4.requirements.
5.Support maximum 3 units for parallel working Flexible strategy.
Flexible Strategy
6.On line mode provides higher system availability.
7.High efficiency mode provides more economic operation.
8.Frequency conversion provides more stable output.
Model: GP9312C 10-100KVA(3Ph/1Ph)
Higher Power Factor /Higher Efficiency /Support Three Phase Input
Output Power Factor Up To 0.9
Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.
Input power factors up to 0.99
Three phase input model support three phase PFC , input THDI<5%
Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
The efficiency up to 94%
Efficiency up to 93.5%when take the 30%load
ECO mode efficiency up to 98%
Application:
Data Center ,Bank Station,Network,Communication Equipment,Office,Automatic Equipment,
Monitor Equipment,Control System,Computer Center,Precision Equipment and so on
Technical Specification:
| Model | HP9116C 1-3KVA |
| 1KT | 1KT-XL | 2KT | 2KT-XL | 3KT | 3KT-XL |
| Rated Power | 1KVA/0.7KW | 2KVA/1.4KW | 3KVA/2.1KW |
| Rated Voltage | 220/230/240VAC |
| Rated Frequency | 50/60 Hz |
| Rated Frequency |
| Voltage Range | 115~295VAC (±3VAC) |
| Frequency Range | 50HZ: (46~54HZ); 60HZ:(56HZ~64HZ) |
| Power Factor | > 0.98 |
| Output |
| Voltage Regulation | 220/230/240X (1±2%)VAC |
| Frequency Regulation | 50/60 Hz±0.05Hz |
| Power Factor | 0.7/0.8 (Optional)Standard 0.7 |
| Voltage Distortion | Linear load＜3％ Non-linear load＜6％ |
| Overload Capability | 110%~150% for 30 sec；≥150% for 200ms |
| Current Crest Ratio | 3∶1 |
| Transfer Time | 0ms (AC mode→Battery mode) |
| Battery |
| DC Voltage | 36VDC | 96VDC | 96VDC |
| Recharge Time | 5 hours to 90% of capacity after full load discharge |
| Recharge Current | 1A | 4A/8A (Optional) | 1A | 4A/8A (Optional) | 1A | 4A/8A (Optional) |
| Display |
| LCD | Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate. |
| Communication |
| Interface | Smart RS232, SNMP(Optional),USB (Optional) |
| Environment |
| Operation Temperature | 0~40℃ |
| Humidity | 0~95% (Non-condensing) |
| Storage Temperature | -25℃~55℃ |
| Sea Level Elevation | ＜1500m |
| Noise Level (1m) | ＜45dB | <50dB | <50dB |
| Physics Characteristic |
Weight
(KG) | N.W | 14 | 7 | 31 | 13.5 | 31.5 | 14 |
| G.W | 16 | 9 | 33 | 16 | 33.5 | 16.5 |
| Dimensions: Wx D x H )mm | 145X400X220 | 192X460X340 |
