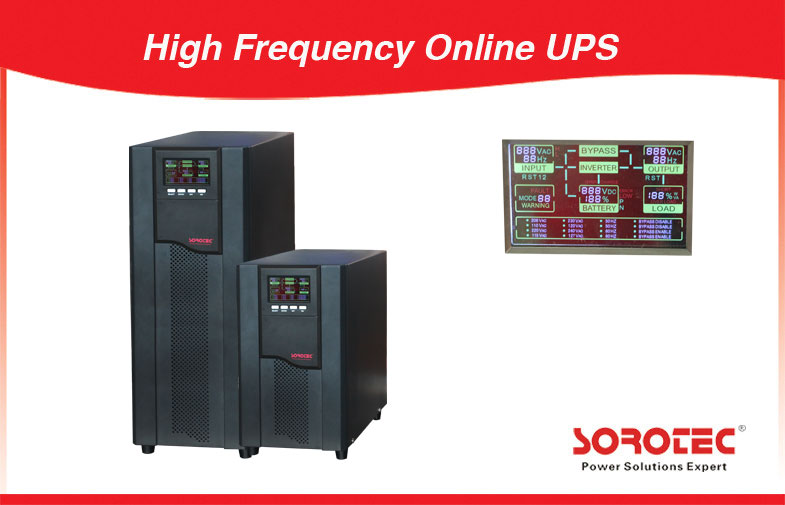

1KVA/0.9KW UPS with Stable Parallel Control Technology and Input Topology Design
Brief Description
1Ph in/1Ph out online UPS New Technology,New Design,High Reliability,Wide Input Voltage,High Power Factor 0.9, Zero Transfer Time,RS232/SNMP/USB Optional.
Battery can choose
1.Battery voltage can be choice depend on capacity , can satisfy different requirement.
2.Convenience to get more back up time and lower system invests
3.Convenience to save cost of battery
4.Intelligent battery monitors
Charge current can be adjust
5.Standant charge current 4A
6.Support more discharge time and more capacity battery for 8A charger
Input topology design
7.Support three phase input or single phase input for three phase UPS
8.Super wide input voltage and frequency range suitable for bad power electirc environment
9.Digital control DSP technology and best power component make the system safe and reliable
Higher Function
Output power factor up to 0.9
Output power factor is 0.9 that mean can take more load ,if you take same load that can get
higher reliability.
Input power factors up to 0.99
Three phase input model support three phase PFC,input THDI＜5%
Output voltage regulation 1% frequency regulation 0.1%,parallel current sharing 1%
Multifunction friendly design
Advanced parallel technology
1.Stable parallel control technology make sure current sharing to 1%
2.Select trip technology can avoid and isolation system fault then improved system availability
3.Flexible extension capacity and redundance management that can satisfy all kinds of requirements
4.Support maximum 3 units for parallel working
Flexible strategy
5.On line mode provides higher system availability
6.High efficiency mode provides more economic operation
7.Frequency conversion provides more stable output
Typical Application
Data centre,bank station,network,communication equipment,office ,automatic equipment,monitor equipment,control system.
Technical Specifications of Online UPS HP9116C PLUS 1-3KVA
| Model | HP9116C Plus 1-3KVA |
| 1KT | 1KT-XL | 2KT | 2KT-XL | 3KT | 3KT-XL |
| Rated Power | 1KVA/0.9KW | 2KVA/1.8KW | 3KVA/2.7KW |
| Rated Voltage | 220/230/240VAC |
| Rated Frequency | 40/70 Hz |
| Rated Frequency |
| Voltage Range | 115~300VAC (±3VAC) |
| THDi | 50HZ: (46~54HZ); 60HZ:(56HZ~64HZ) |
| Power Factor | > 0.98 |
| Output |
| Voltage Regulation | 220±2%VAC |
| Frequency Regulation | 50/60 Hz±0.05Hz |
| Power Factor | 0.9 |
| Voltage Distortion | Linear load＜4％ Non-linear load＜7％ |
| Overload Capability | 110%~150% for 47-25 sec；150%~200% for 25 -300ms; >200% for 200m |
| Current Crest Ratio | 3∶1 |
| Transfer Time | 0ms (AC mode→Battery mode) |
| Efficiency(on line mode) | 89% | 90% | 90% |
| Battery |
| DC Voltage | 24 VDC | 36 VDC | 48 VDC | 72 VDC | 72VDC | 96VDC |
| Recharge Time | 7hrs to 90% of capacity |
| Recharge Current | 1A | 6A | 1A | 6A | 1A | 6A |
| Display |
| LCD | Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate. |
| Communication |
| Interface | Smart RS232, SNMP(Optional),USB (Optional) |
| Environment |
| Operation Temperature | 0~40℃ |
| Humidity | 20~90% (Non-condensing) |
| Storage Temperature | -25℃~55℃ |
| Sea Level Elevation | ＜1500m |
| Noise Level (1m) | ＜45dB | <50dB |
| Physics Characteristic |
| Dimensions: Wx D x H )mm | 145X345X229 | 192X393X328 |
